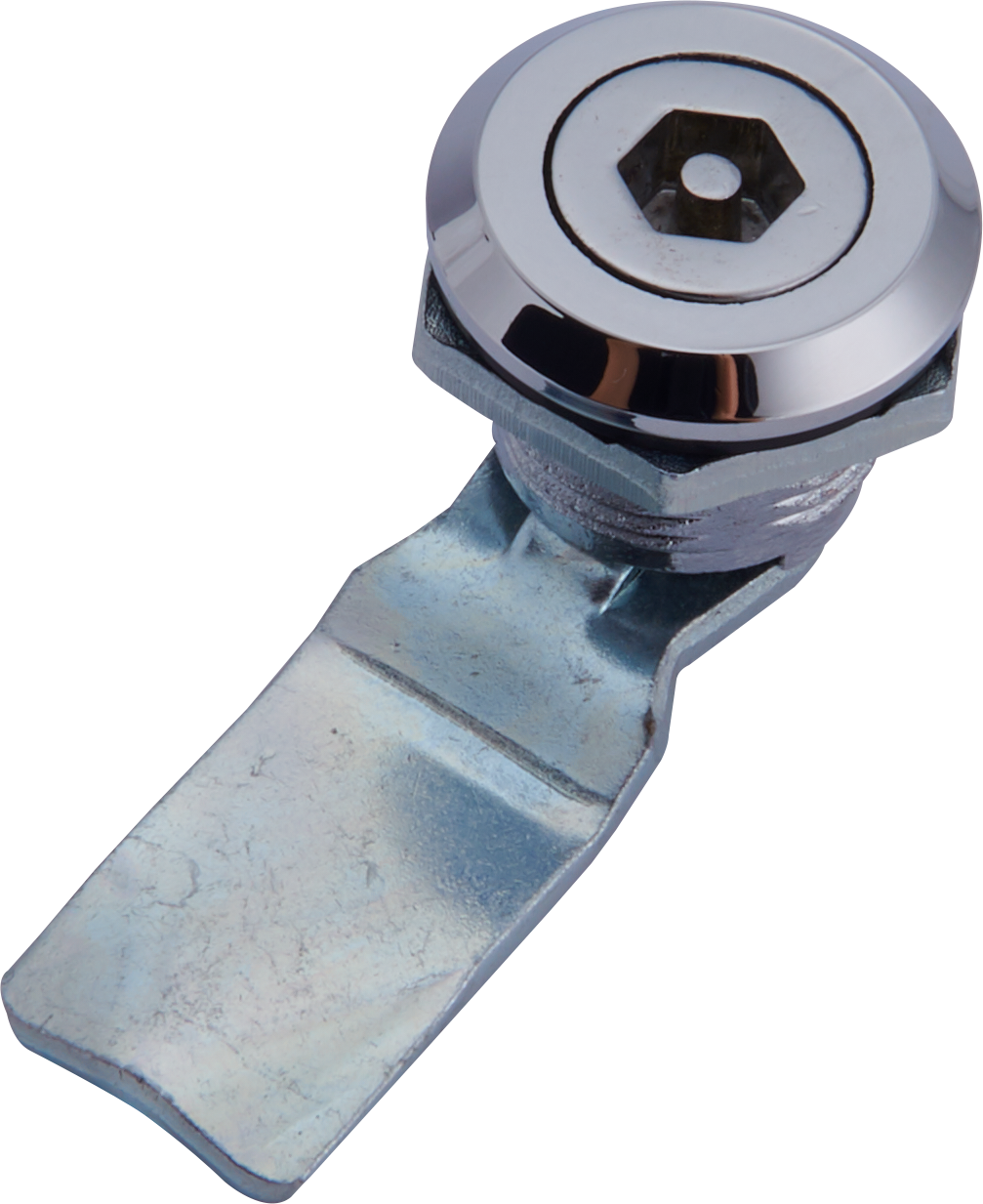

MS705-17

MS705—17
Material: zinc alloy; stainless steel;
Surface treatment: chrome-plated or blackened; SUS304 stainless steel;

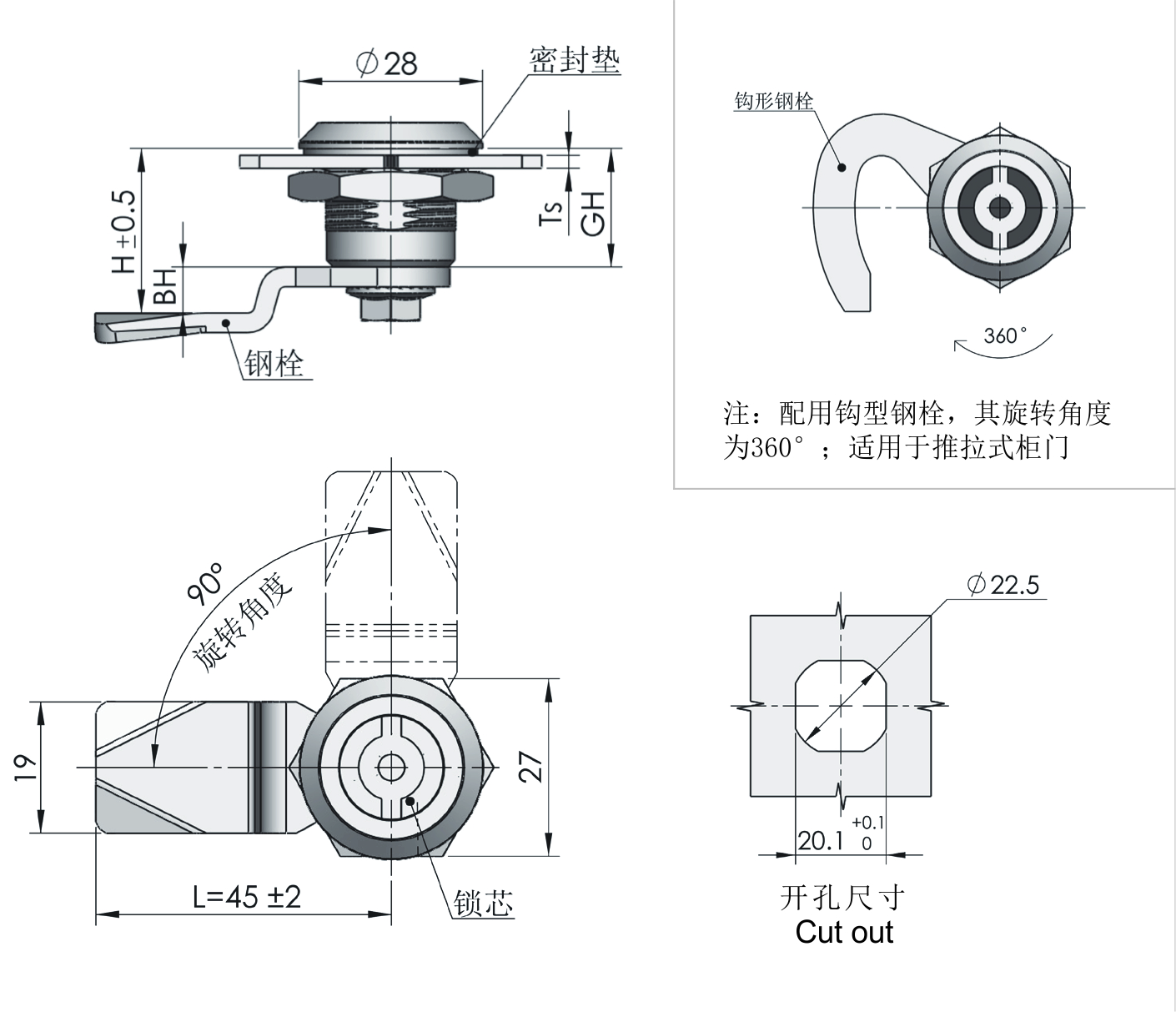

Structural description: 90 ° rotation of the lock cylinder can be opened or closed
performance parameter
Maximum static load:270 N
Maximum input torque: 9 N.m
Recommended tightening torque for fixing nuts:20 N.m
