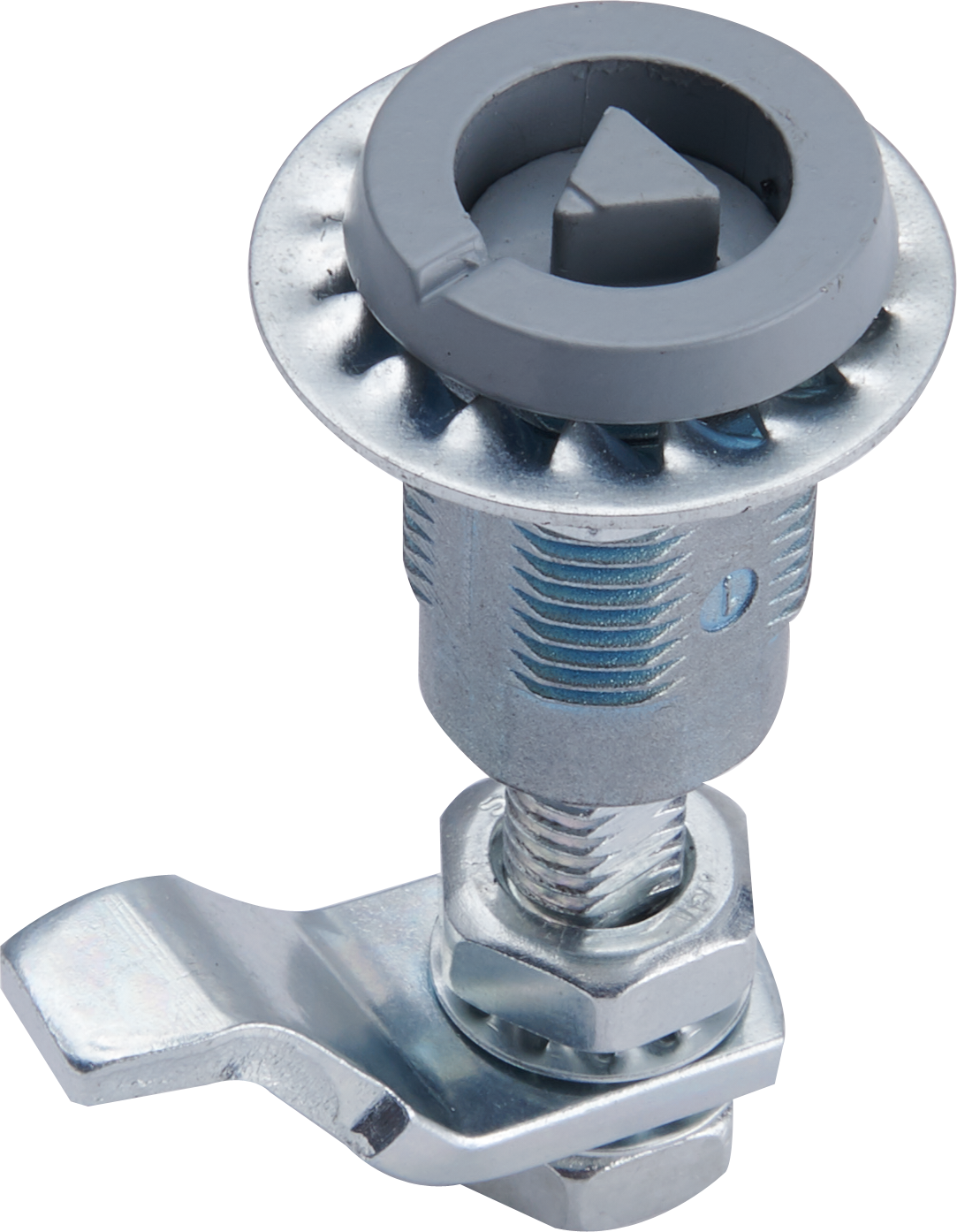

MS816-3-1

MS816-3-1
Material: zinc alloy base, handle, lock core, carbon steel pressing plate, steel bolt
Surface treatment: painting (black and light) base, handle, white zinc plated pressing plate, steel bolt
Structure description: quick opening, convenient installation; adjustable nut can be applied to all kinds of stop range; with expansion function
performance parameter
Handle bearing tension value: ≤ 690n
Maximum static load: 430n
