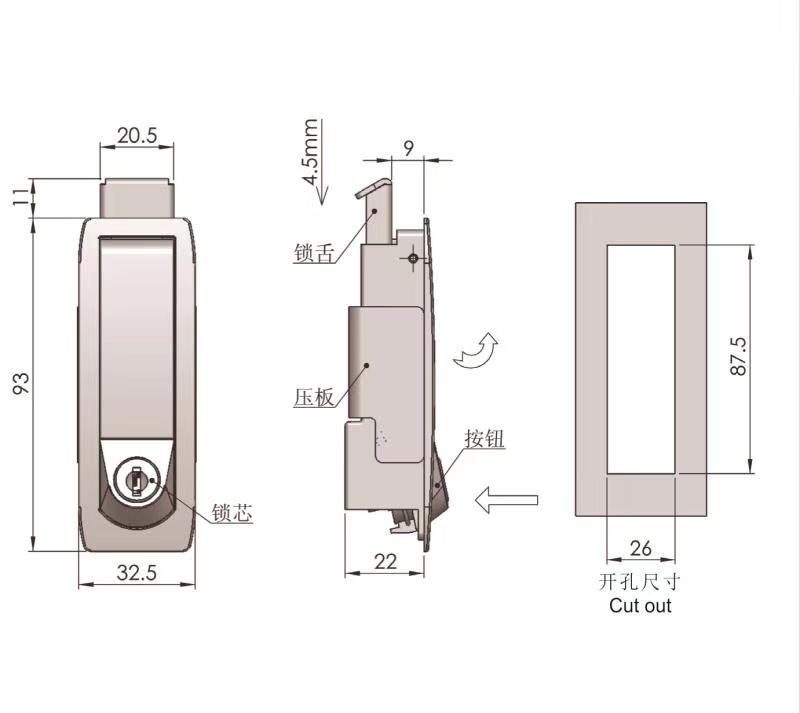

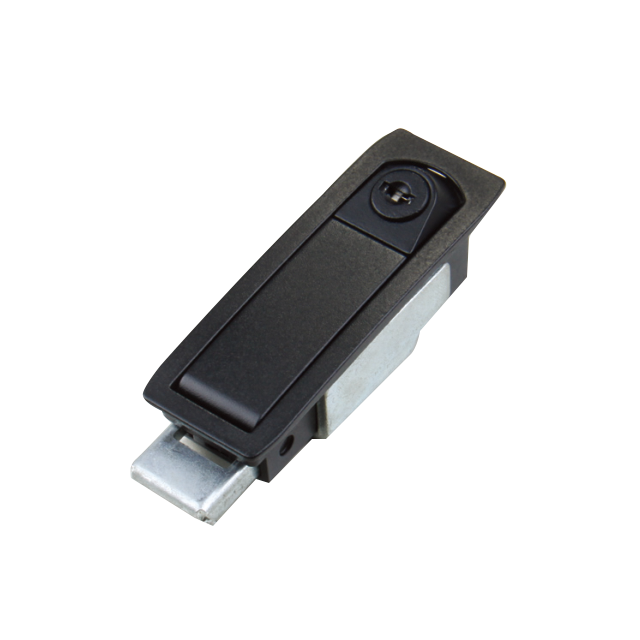

MS708C

MS708C
Material: zinc alloy base, handle, button, lock core, carbon steel lock tongue, pressing plate
Surface treatment: sand blasting + black paint spraying base, handle, button, lock cylinder, white zinc plated lock tongue, pressing plate
Structure description: when the button is pressed, the handle will automatically flex, and then manually pull up the handle to open performance parameter
Handle bearing tension value: ≤ 200N
Maximum static load: 200N
