Shanghai yingguang international trading co., ltd was founded in 2014. Specializing in the sales of high and low voltage switch cabinet locks, cabinet locks, instrument cabinet locks, communication cabinet locks, hinges, accessories and other series of hardware products, in order to locate high-grade products, fashionable products to promote the market, products are widely used in industrial cabinets,

Shanghai yingguang international trading co., ltd was founded in 2014. Specializing in the sales of high and low voltage switch cabinet locks, cabinet locks, instrument cabinet locks, communication cabinet locks, hinges, accessories and other series of hardware products, in order to locate high-grade products, fashionable products to promote the market, products are widely used in industrial cabinets,

Shanghai Yingguang International Trade Co., Ltd.
Address:701, No.11, Lane 225, Jinxiang Road, Pudong New Area, Shanghai, China
TEL:021-50373315  021-50373016
FAX:021-61650806
Email:oubao8@163.com
Post :20120
WEB:www.yingguanggj.com

产品信息
PRODUCT

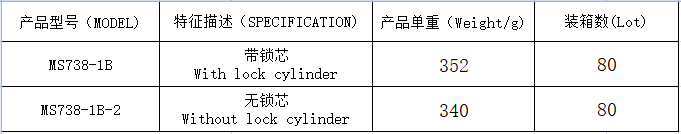

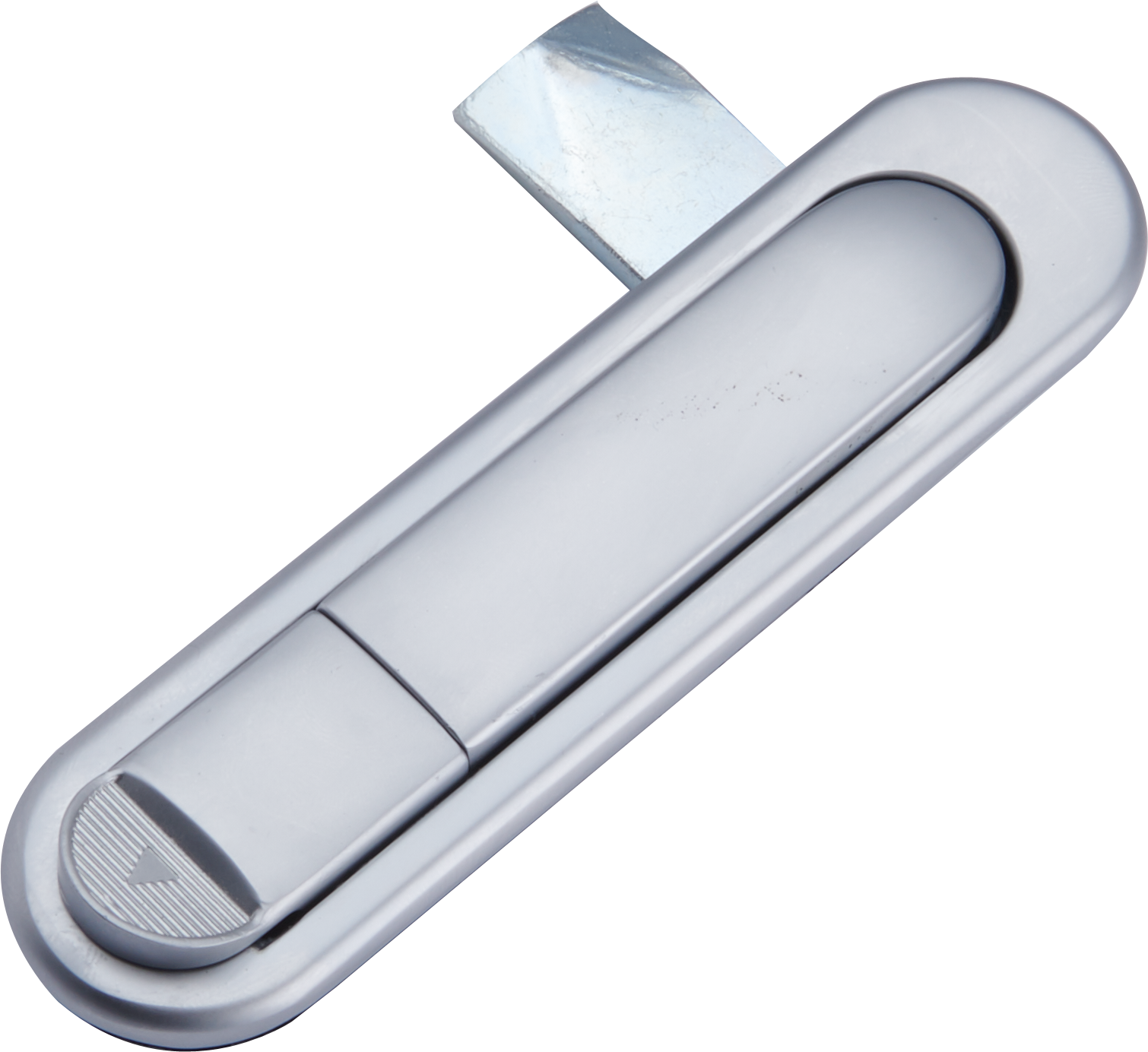

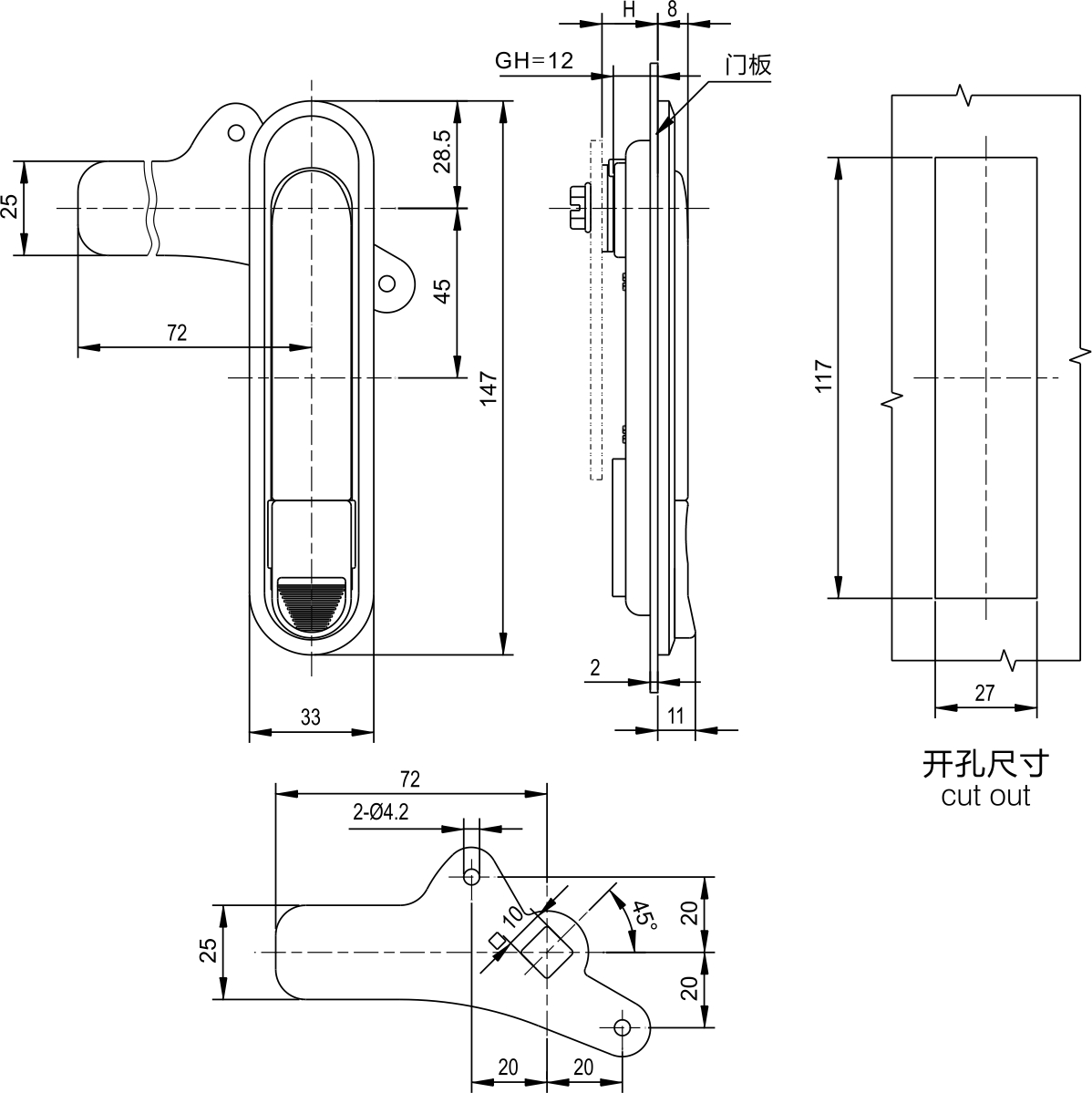

MS738-1B-2

MS738-1B-2
Material: zinc alloy base, handle, lock core, carbon steel pressing plate, steel bolt
Surface treatment: matt chrome base, handle, white zinc plate, steel bolt Structure description: quick opening, convenient installation; single point and three-point locking function can be achieved by replacing the steel bolt
performance parameter
Handle bearing tension value: ≤ 510n
Handle load torque value: ≤ 40n. M
Maximum static load: ≤ 270n
