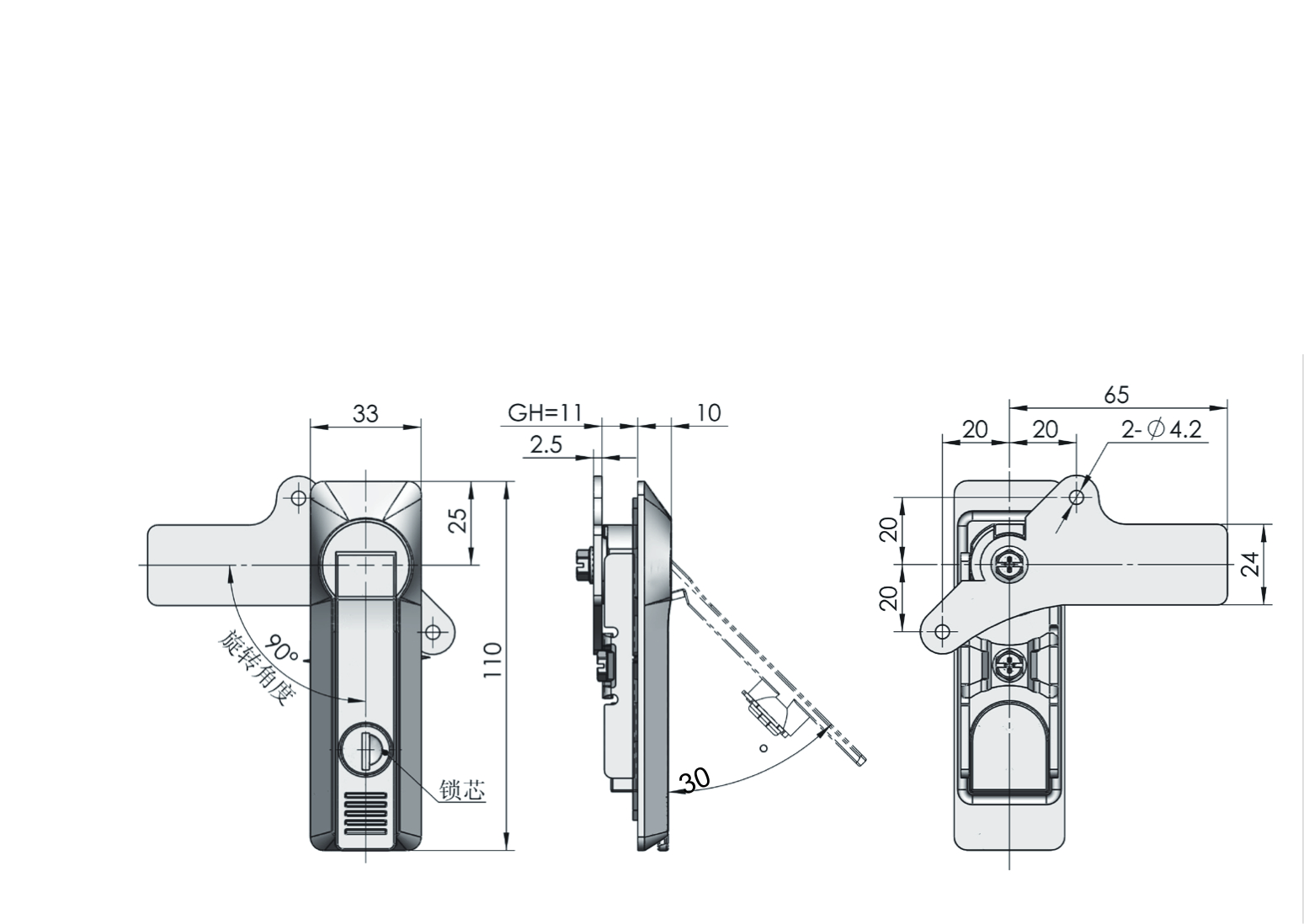

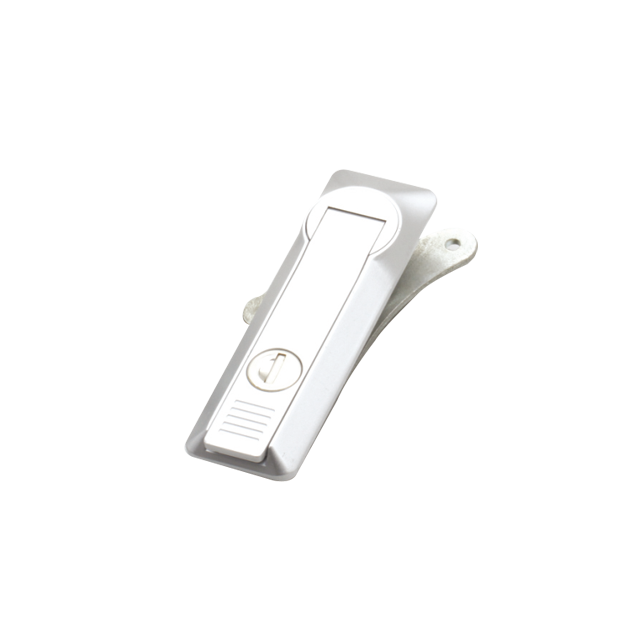

MS723-2

MS723-2
Material: zinc alloy base, handle, carbon steel bolt
Surface treatment: matt chrome base, handle, white zinc plated steel bolt
Structure description: The handle can be opened or closed by 90 ° rotation, and the direction of the steel bolt can be changed to achieve left and right opening.
performance parameter:
Handle bearing tension value: ≤ 98n
Handle load torque value: ≤ 14N. M
Maximum static load: 200N
