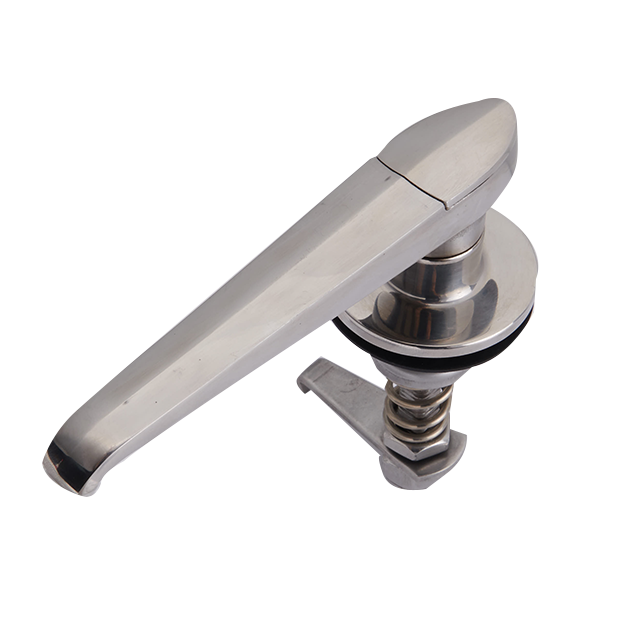

MS807-1B

MS807-1B
Material: stainless steel handle, base, lock core, dust cover, steel bolt, ring gear, shaft, conventional zinc alloy lock core
Surface treatment: mirror polished handle, base, dust cover;
Structural function: universal left and right door, adjustable steel bolt
Performance parameter
Maximum static load: 242N
Recommended tightening torque for fixing nuts: 30N.m
Maximum input torque: 23N.m
