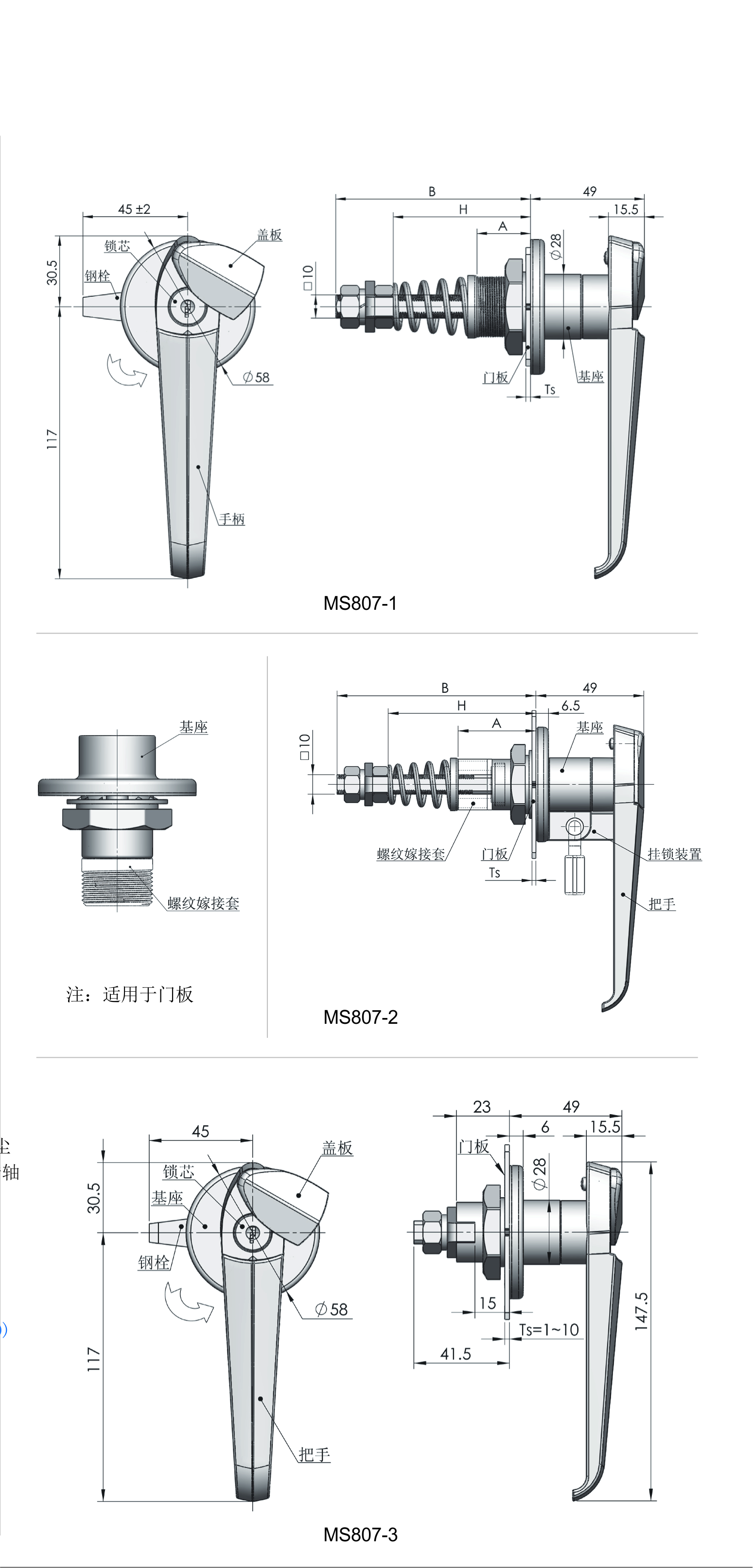

MS807-2

MS807-2
Material: zinc alloy handle, base, lock core, dust cover; galvanized steel bolt, ring gear, shaft
Surface treatment: chrome-plated zinc alloy handle, base, lock core, dust cover; galvanized steel bolt
Structural function: open the door in left and right, adjustable steel bolt
Performance parameter
Maximum static load: 242N
Recommended tightening torque for fixing nuts: 30N.m
Maximum input torque: 23N.m
