MS302-2

MS302-2
Material: zinc alloy base, handle, carbon steel bolt, button, shaft, ABS cover Surface treatment: chrome plated base, handle, white zinc plated steel bolt, button shaft

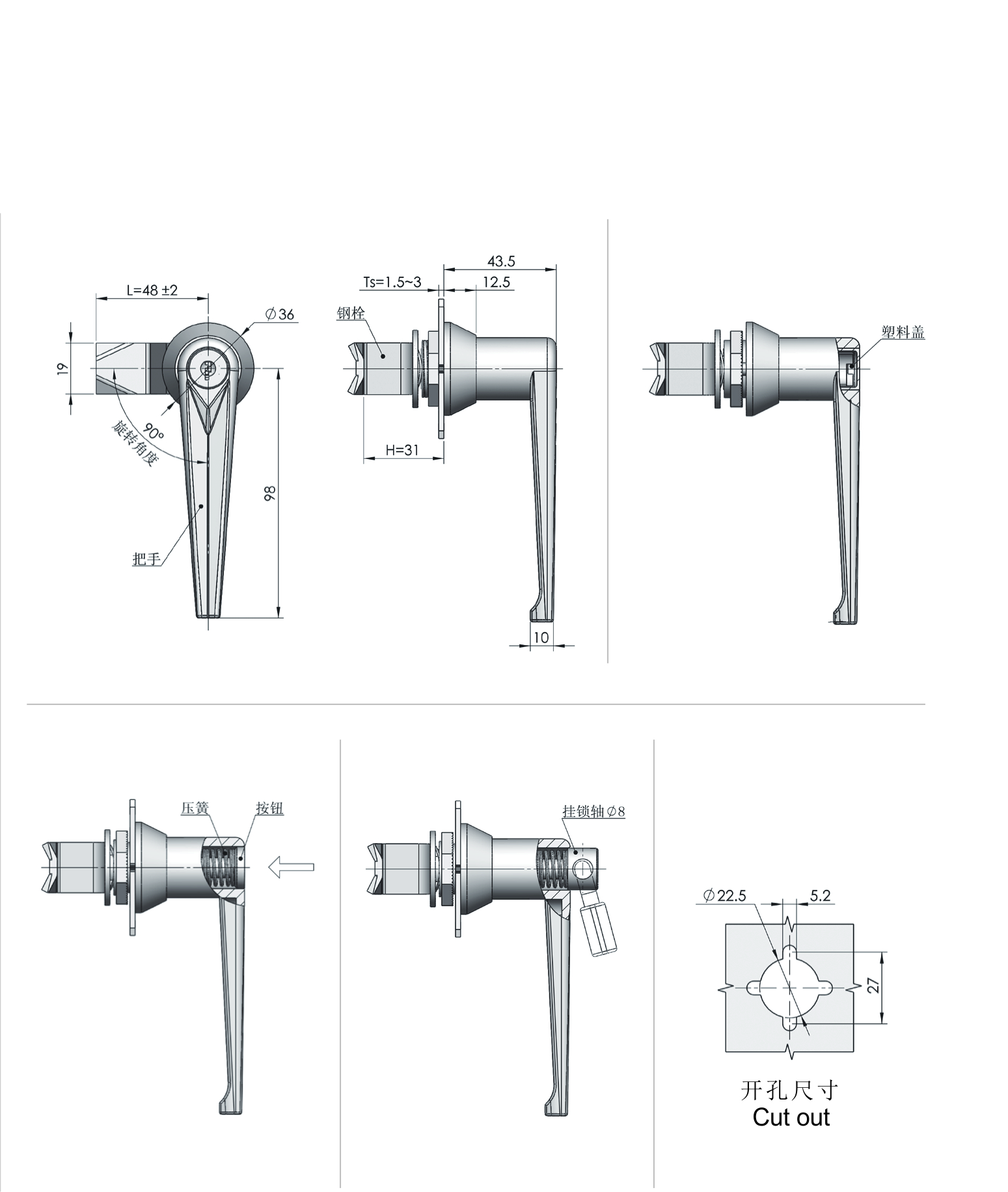

Structure description: turn the handle 90 ° to realize opening or locking
Note: default key K05
performance parameter
Maximum static load: 220n
Recommended tightening torque of fixing nut: 20n. M
Maximum input torque: 15N. M
