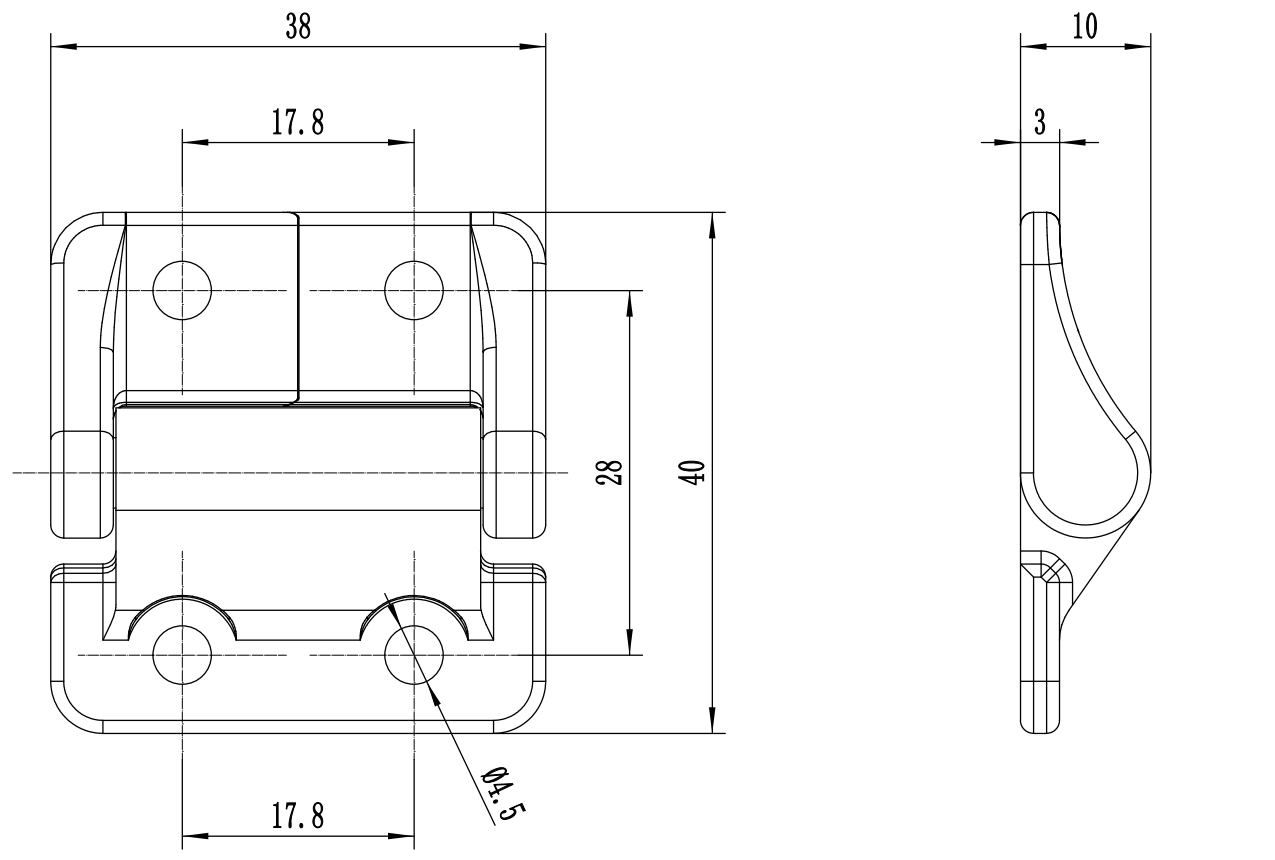

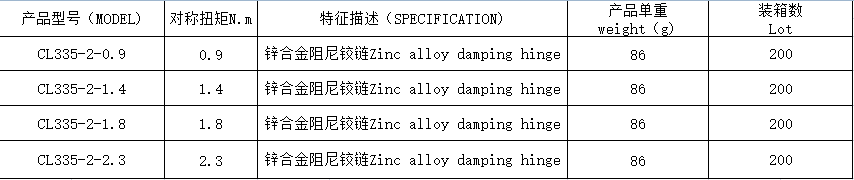

CL335-2

CL335-2
Material: zinc alloy. Steel damper hinge
Surface treatment: spray black
Structural function: can be opened at an angle of 180 degrees, and can rotate 20,000 times under the static torque specification of plus or minus 20 percent
Performance parameters:
Maximum static load: 155N
Average ultimate load: 3000N
Axial load: 155N
Average ultimate load: 1600N
